3.1.4. site2_ha-pair

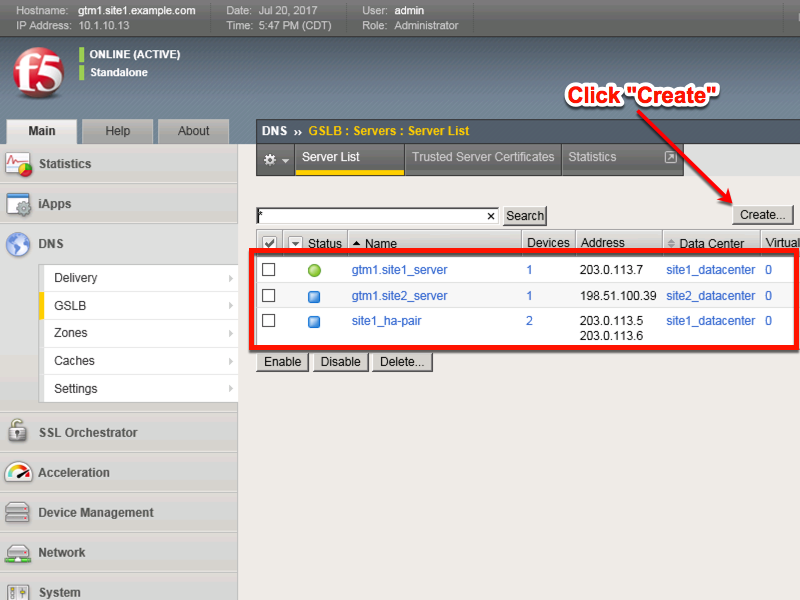

LTM devices need to be defined. Create a server object for the bigip1.site2 and bigip2.site2 HA pair

../../../_images/server_create_gtm1-gtm2-site1-hapair.png

Create a Server Object as defined in the table below:

Setting Value
Name site2_ha-pair
Data Center site2_datacenter
Device Add: bigip1.site2.example.com : 198.51.100.37
Device Add: bigip2.site2.example.com : 198.51.100.38
Health Monitors bigip
Virtual Server Discovery Enabled
Link Discovery Enabled

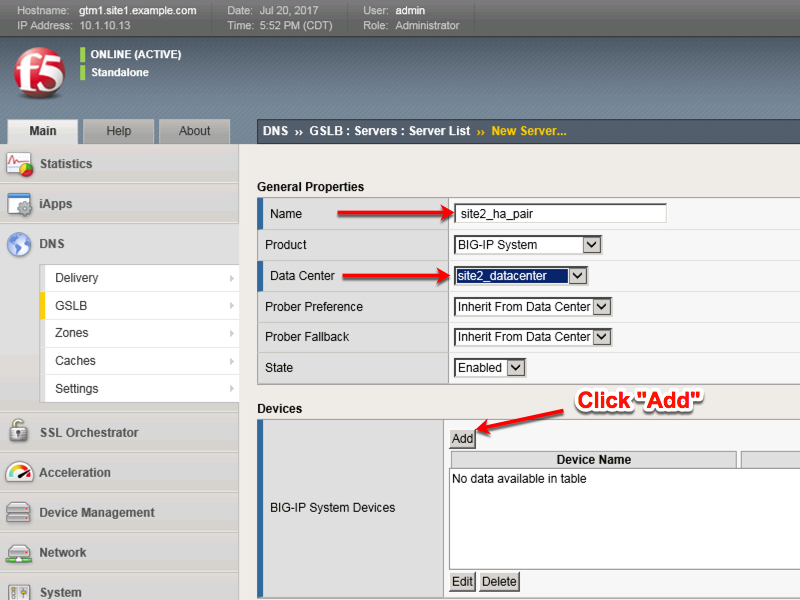

  1. Fill in the Name and Datacenter

    ../../../_images/site2_click-addserver.png

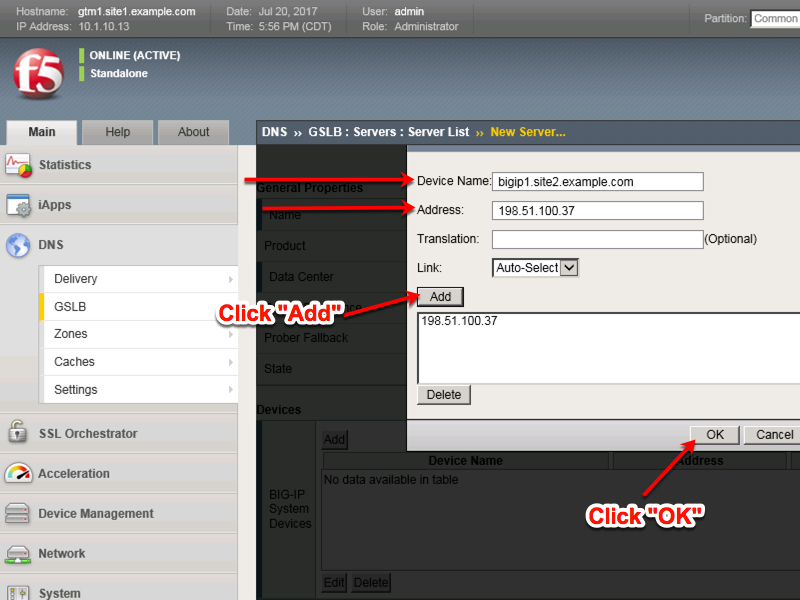

  2. Click the “Add” button to define IP addresses

    ../../../_images/site2_ha_pair_bigip1_add.png

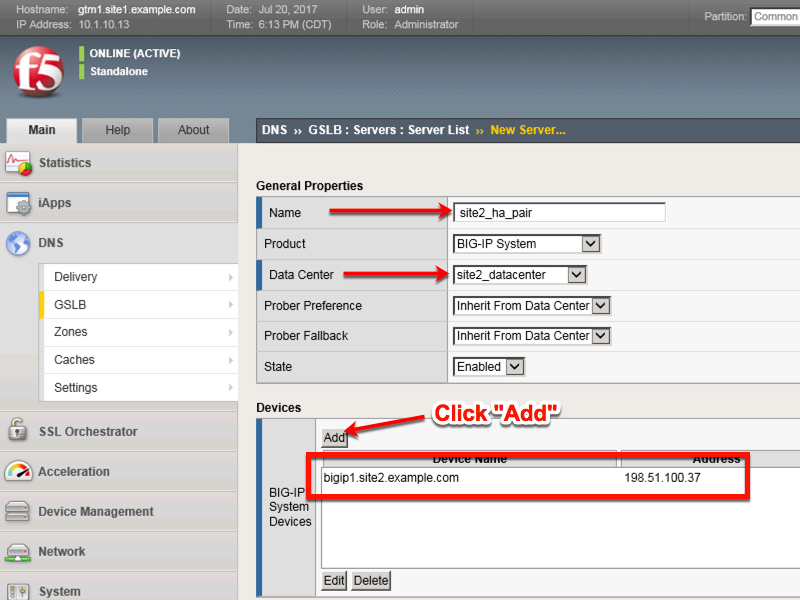

  3. Click “Add” again to define the other BIG-IP in the HA pair.

    ../../../_images/site2_click-addserver_again.png

  4. Click the “Add” button to define IP addresses

    ../../../_images/site2_ha_pair_bigip2_add.png

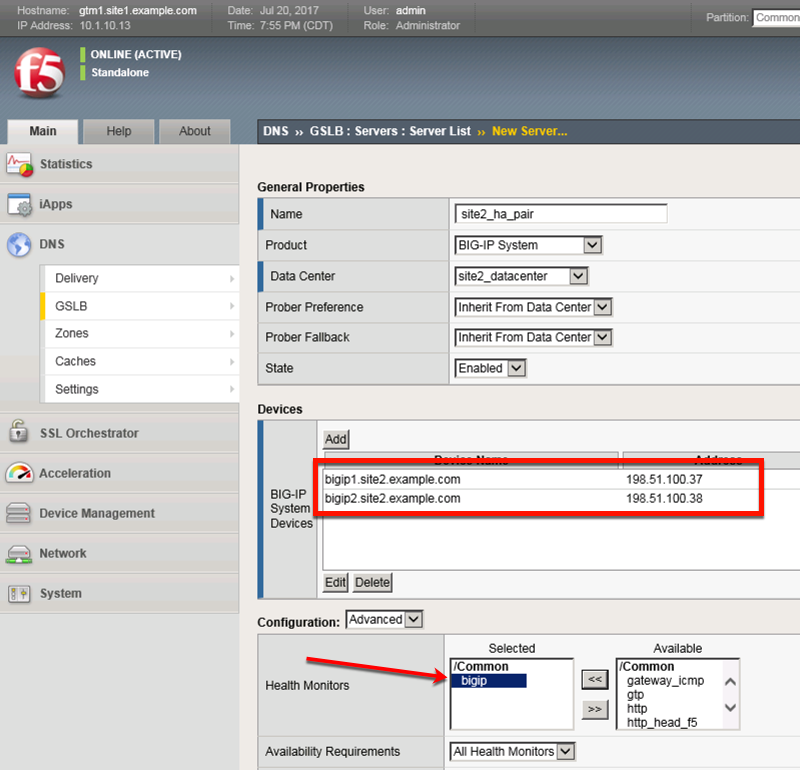

  5. Complete the form and associate the “bigip” “Health Monitor”

    ../../../_images/site2-HA_pair_create.png

  6. Make sure to enable both “Virtual Server” and “Link” discovery

    ../../../_images/VS_and_link_auto_discovery.png

https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/create.jsp

TMSH

tmsh create gtm server site2_ha-pair datacenter site2_datacenter devices add { bigip1.site2.example.com { addresses add { 198.51.100.37 { } } } bigip2.site2.example.com { addresses add { 198.51.100.38 { } } } } link-discovery enabled monitor bigip product bigip virtual-server-discovery enabled
