3.1.2. gtm1.site2

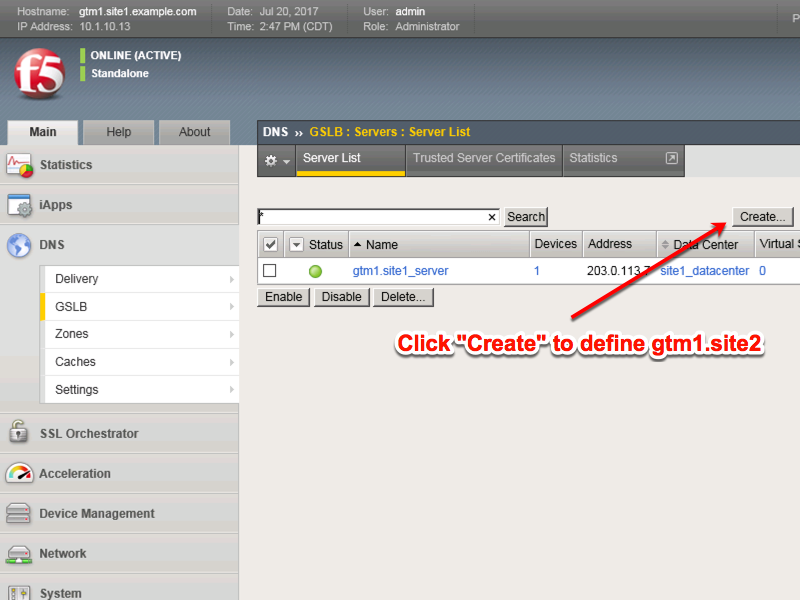

All GTM devices need to be defined. Create a server object for gtm1.site2

../../../_images/server_create_gtm1.png

Click “Create” to define gtm1.site2 as defined in the table below:

Setting Value
Name gtm1.site2_server
Data Center site2_datacenter
Devices Add: gtm1.site2.example.com : 198.51.100.39
Health Monitors bigip

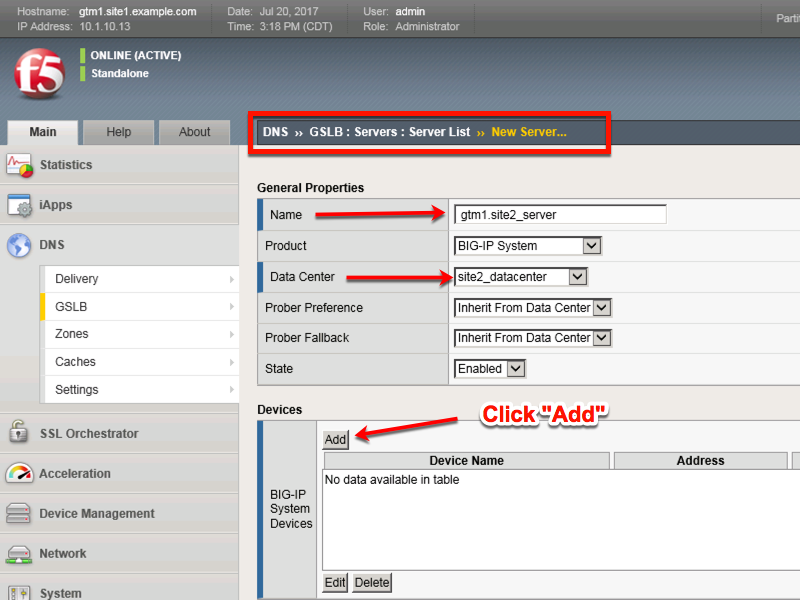

  1. Fill in the Name and Datacenter

    ../../../_images/gtm2-click_add.png

  2. Click the “Add” button to define IP addresses

    ../../../_images/gtm2_click-addserver.png

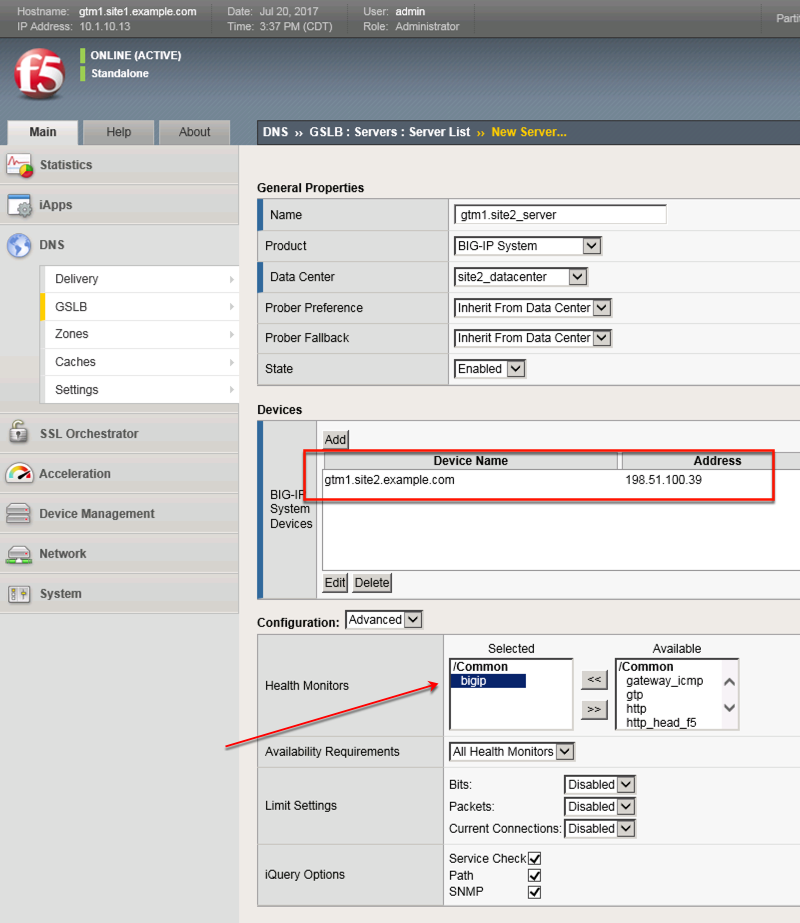

  3. Complete the form and associate the “bigip” “Health Monitor”

    ../../../_images/gtm1.site2_create.png

https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/create.jsp

TMSH

tmsh create gtm server gtm1.site2_server datacenter site2_datacenter devices add { gtm1.site2.example.com { addresses add { 198.51.100.39 } } } monitor bigip product bigip
