3.1.1. gtm1.site1

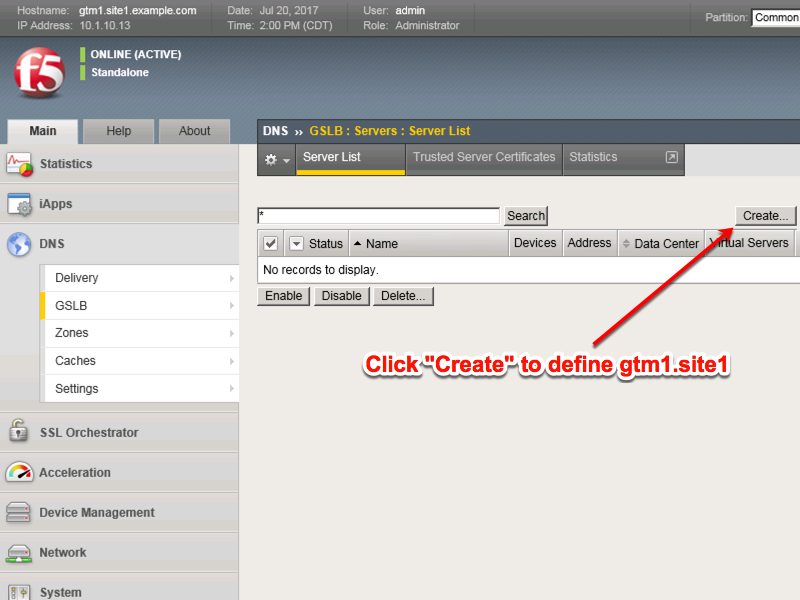

All GTM devices need to be defined. Create a server object for gtm1.site1

../../../_images/server_create_none.png

Click “Create” to define gtm1.site1 as defined in the table below:

Setting Value
Name gtm1.site1_server
Data Center site1_datacenter
Devices Add: gtm1.site1.example.com : 203.0.113.7
Health Monitors bigip

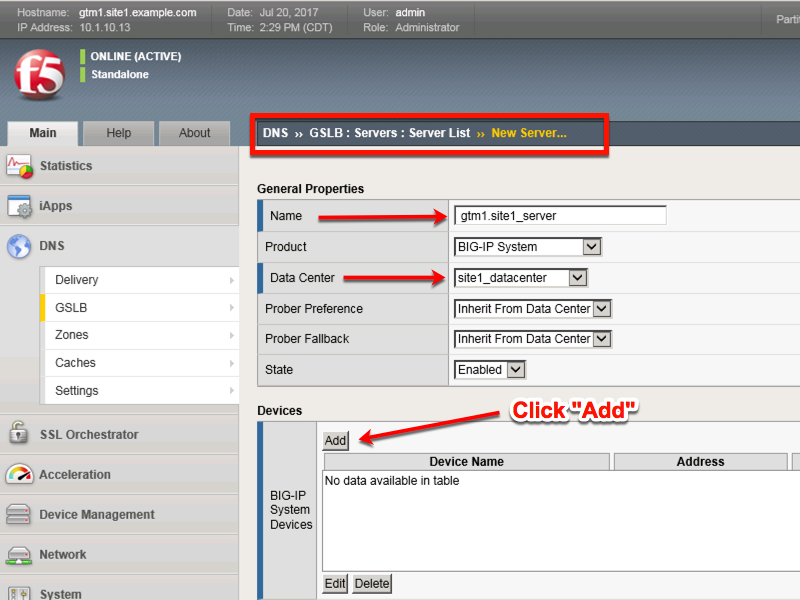

  1. Fill in the Name and Datacenter

    ../../../_images/gtm1-click_add.png

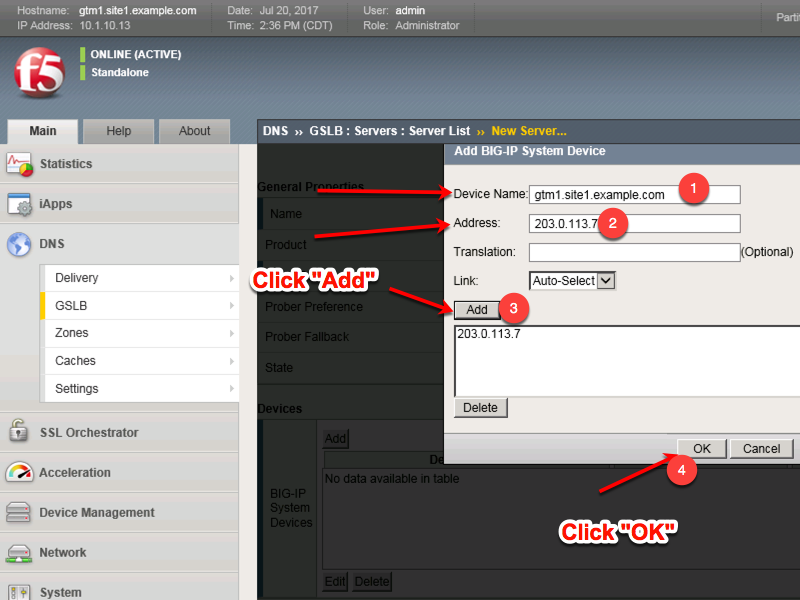

  2. Click the “Add” button to define IP addresses

    ../../../_images/gtm1_click-addserver.png

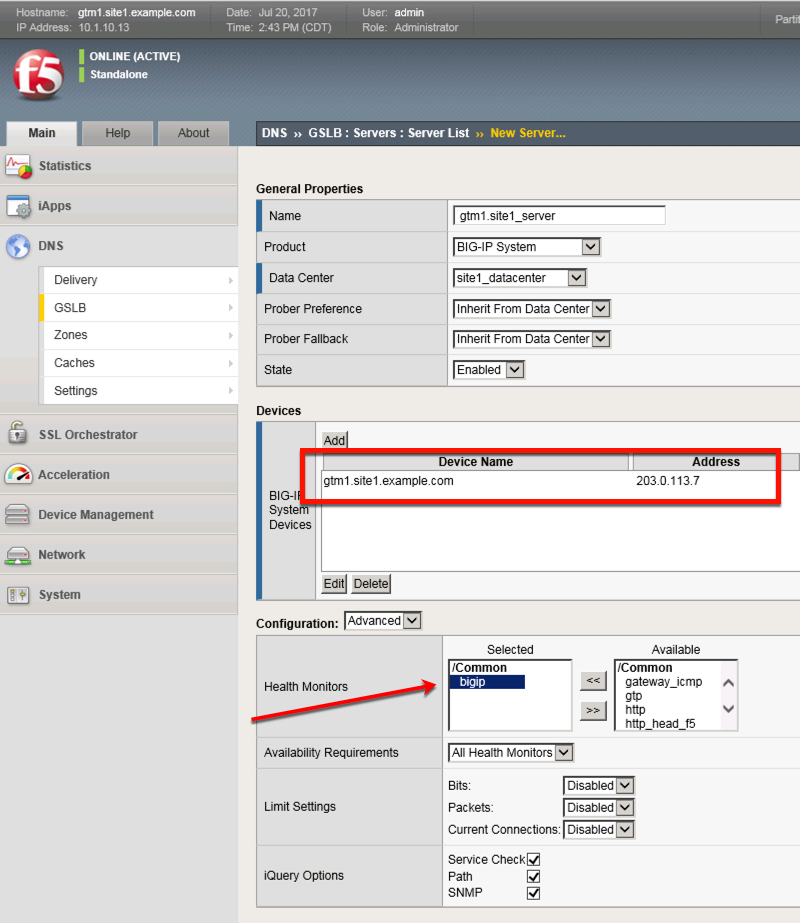

  3. Complete the form and associate the “bigip” “Health Monitor”

    ../../../_images/gtm1.site1_create.png

https://gtm1.site1.example.com/tmui/Control/jspmap/tmui/globallb/server/create.jsp

TMSH

tmsh create gtm server gtm1.site1_server datacenter site1_datacenter devices add { gtm1.site1.example.com { addresses add { 203.0.113.7 } } } monitor bigip product bigip
