2.2. DNS Profile¶
The DNS profile unlocks all BIG-IP features by making the BIG-IP fully aware of DNS as a protocol.
Without a DNS profile applied to a listener, the TMOS does not parse DNS requests and load balance UDP/TCP packets.
Navigate to: DNS ›› Delivery : Profiles : DNS

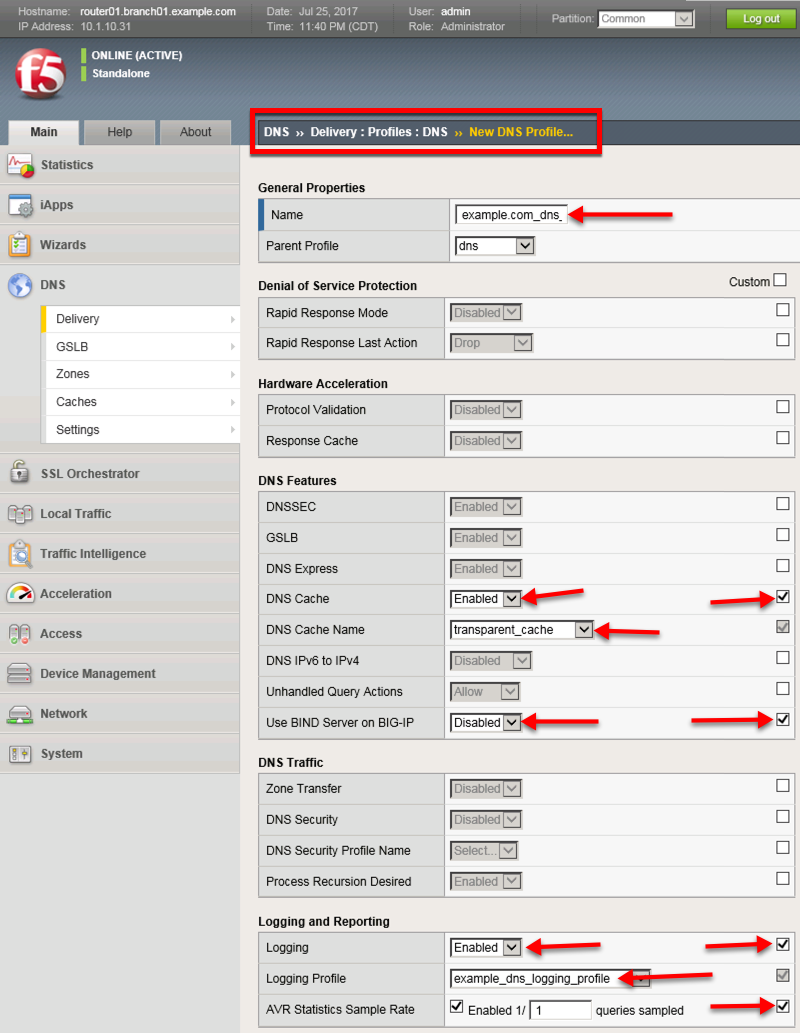

Create a DNS profile as shown in the table below. Check boxes on the right to enable editing and overriding default properties.
Note: AVR sampling in production should be a ratio of queries so as not to overload local database.
Setting | Value |
---|---|
Name | example.com_dns_profile |
DNS Cache | Enabled |
DNS Cache Name | transparent_cache |
Use BIND Server on Big-IP | Disabled |
Logging | Enabled |
Logging Profile | example_dns_logging_profile |
AVR statistics Sample Rate | Enabled, 1/1 queries sampled |
TMSH
tmsh create ltm profile dns example.com_dns_profile { avr-dnsstat-sample-rate 1 cache transparent_cache defaults-from dns enable-cache yes enable-logging yes log-profile example_dns_logging_profile use-local-bind no }
